Complete Plant Design Solution
Complete Plant Design Solution
Isometrics drawings can be produced from piping layouts or project databases. CADWorx Plant Professional includes Isogen® for automated isometric production.
CAESAR II®

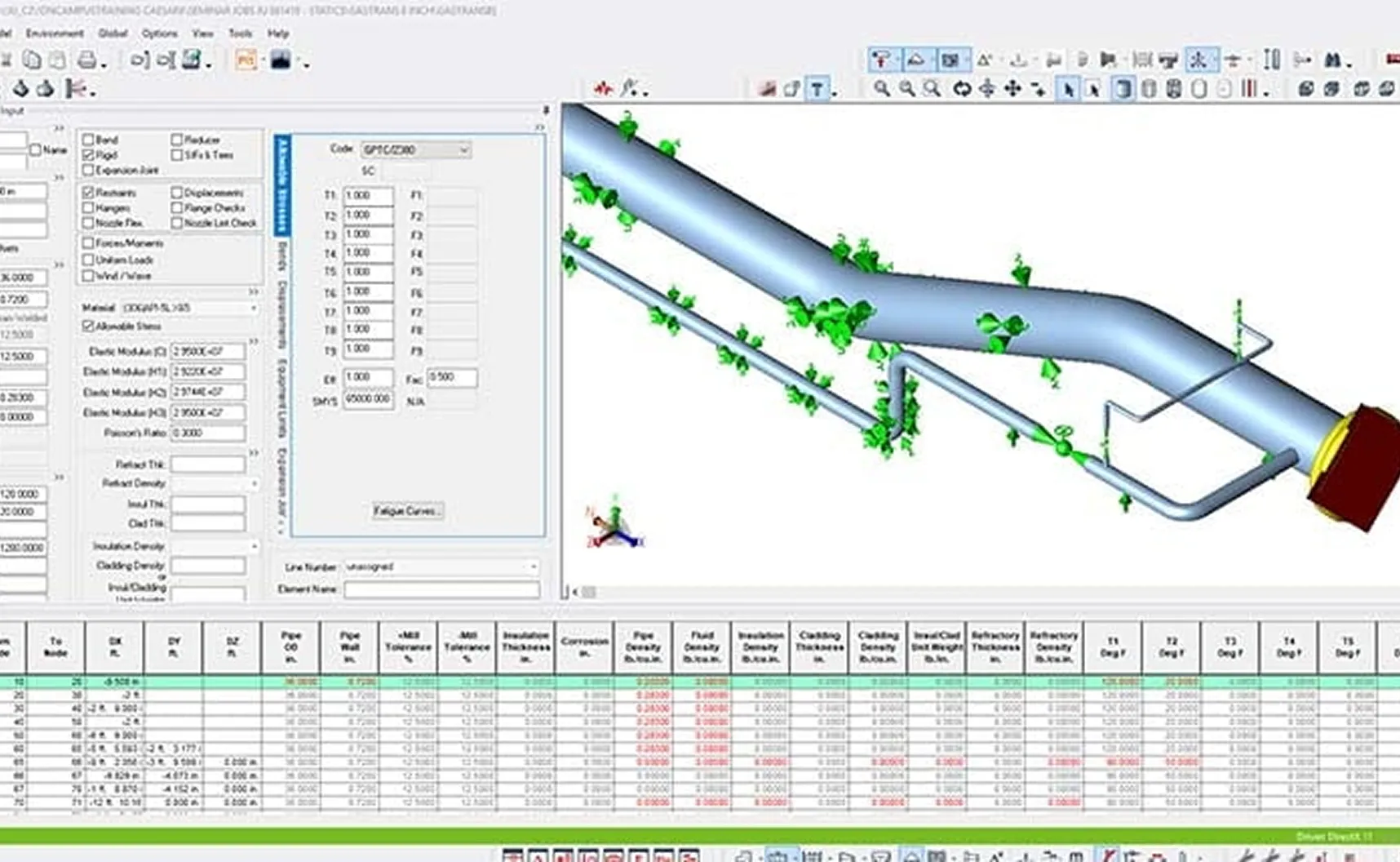

CAESAR II® lets you quickly import models, reducing risk of errors between CAD and stress analysis divisions.
PV Elite® is a complete solution for vessel and heat exchanger design, analysis and evaluation.
TANK® is a comprehensive, easy-to-use tank designer software for the design, analysis and evaluation of oil storage tanks.
CADWorx® Plant Professional includes the most complete DWG file-based range of tools for effective plant design.
With CADWorx® P&ID Professional, you can make intelligent process diagrams that tie into your current corporate standards.
CADWorx® Electrical & Instrumentation Design Suite is a feature-rich set of electrical and instrumentation, design and CAD tools.
CADWorx® Structure is an integrated CAD modelling structural design software that provides advanced levels of automation.
CADWorx® Design Review allows the review and publishing of CADWorx models by designers, owners and other stakeholders.
Intergraph Smart® 3D is specifically designed to deliver mission-critical project requirements.
Intergraph Smart® P&ID software develops and manages your piping and instrumentation diagrams.

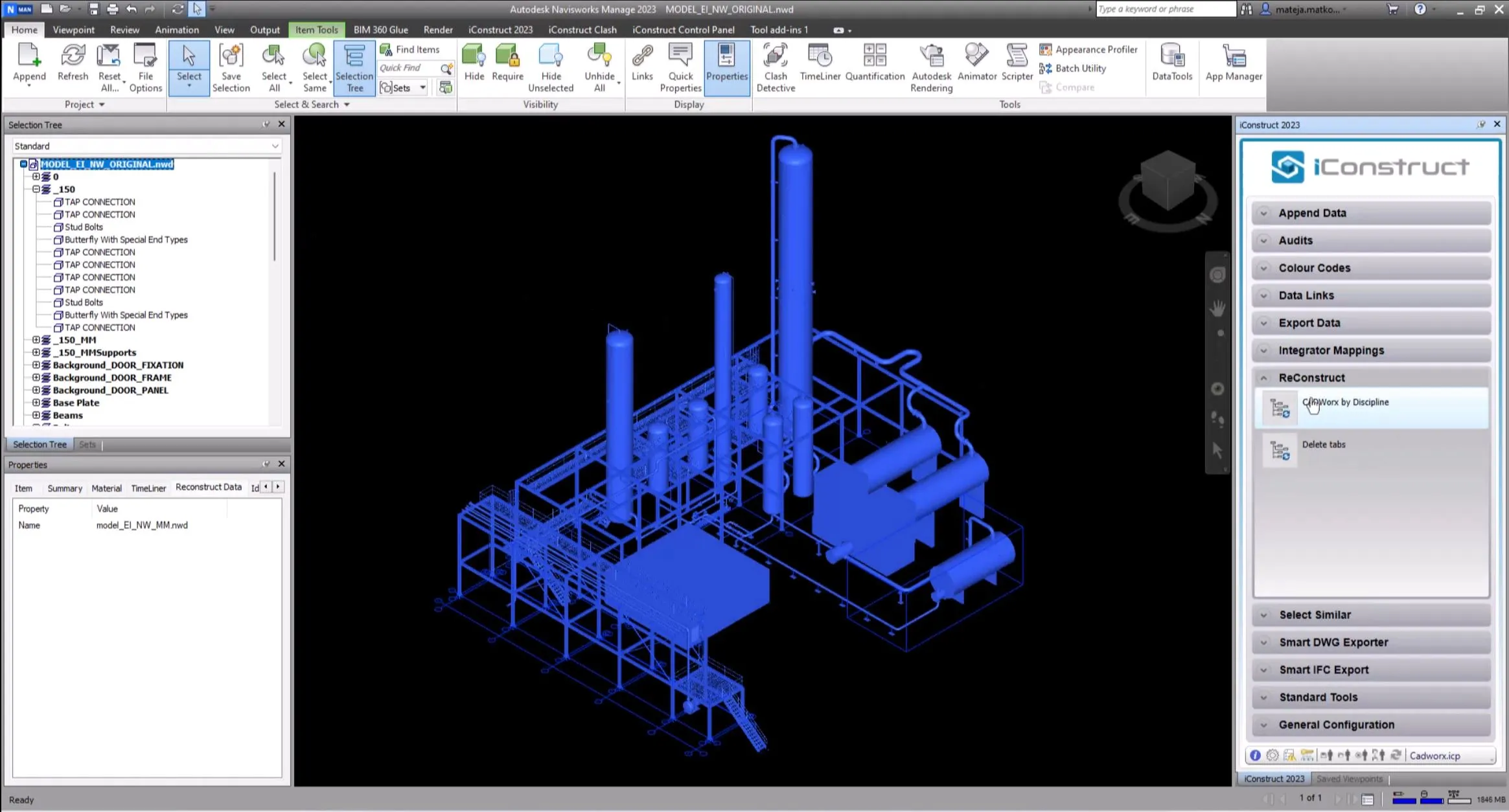

Our Award-winning iConstruct Building Information Modeling (BIM) software is an advanced BIM solution that utilizes the collaboration and review technology provided by Autodesk® Navisworks®
BricsCAD is fully based on the industry standard dwg format, with full command, script, macro and menu compatibility.
AFT Fathom
AFT Fathom is used to calculate pressure drop and flow distribution in liquid and low-velocity gas piping and ducting systems. Includes heat transfer, time simulation, automatic goal seeking, cost calculations and built-in tools for modeling piping system components.
AFT Arrow
AFT Arrow is used to calculate pressure drop and flow distribution in gas piping and ducting systems. Including adiabatic, isothermal, heat transfer, sonic choking, automatic goal seeking, cost calculations and built-in tools for modeling piping system components
AFT Impulse
Analysis software used to calculate pressure surge transients in liquid piping systems caused by waterhammer. Models and simulates your pipe system to help avoid the potentially catastrophic effects of waterhammer and undesirable system transients
AFT xStream
AFT xStream is a powerful fluid dynamic simulation tool for high-speed, acoustic transients that occur in steam and gas piping systems. Uncertainty in design and operations costs money and time. Now you can accurately simulate how your steam and gas systems will respond to potentially harmful transient events.
